INTERLOCK BLOCKS( PRODUCT DESIGN)

  • Writer: a21nidhi
    a21nidhi
  • Sep 25, 2022
  • 1 min read

Updated: Apr 29, 2023

Nidhi Bhoir + Aditya Mahajan


In this specialization course study we were designing the playful products that has some specific mechanism or can just have a satisfying sound or interlock.

Interlock of two or more thing using different material which fit together to form one structure.

ree

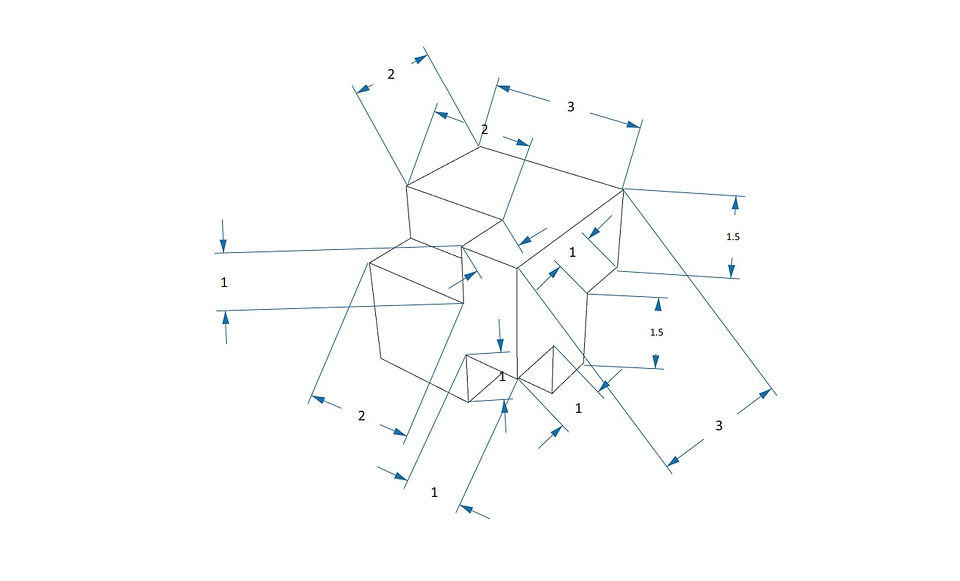

The logic used in the above diagrams are cube division *3 that is each cell get divided into three equal parts.

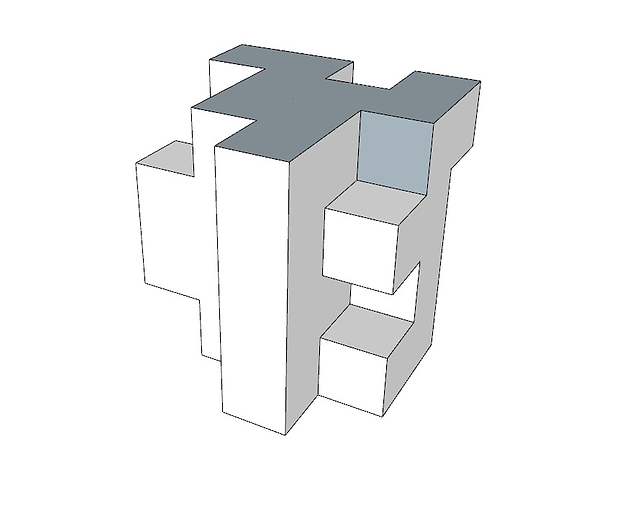

Initially we started exploring interlock blocks digitally.

We decided to keep block size 2 X 2 inches as it is the perfect size to handle and for interlock.









We explode different material like Wax, Pinewood MD,F( Medium -density fiberboard ),Tin, Silicon

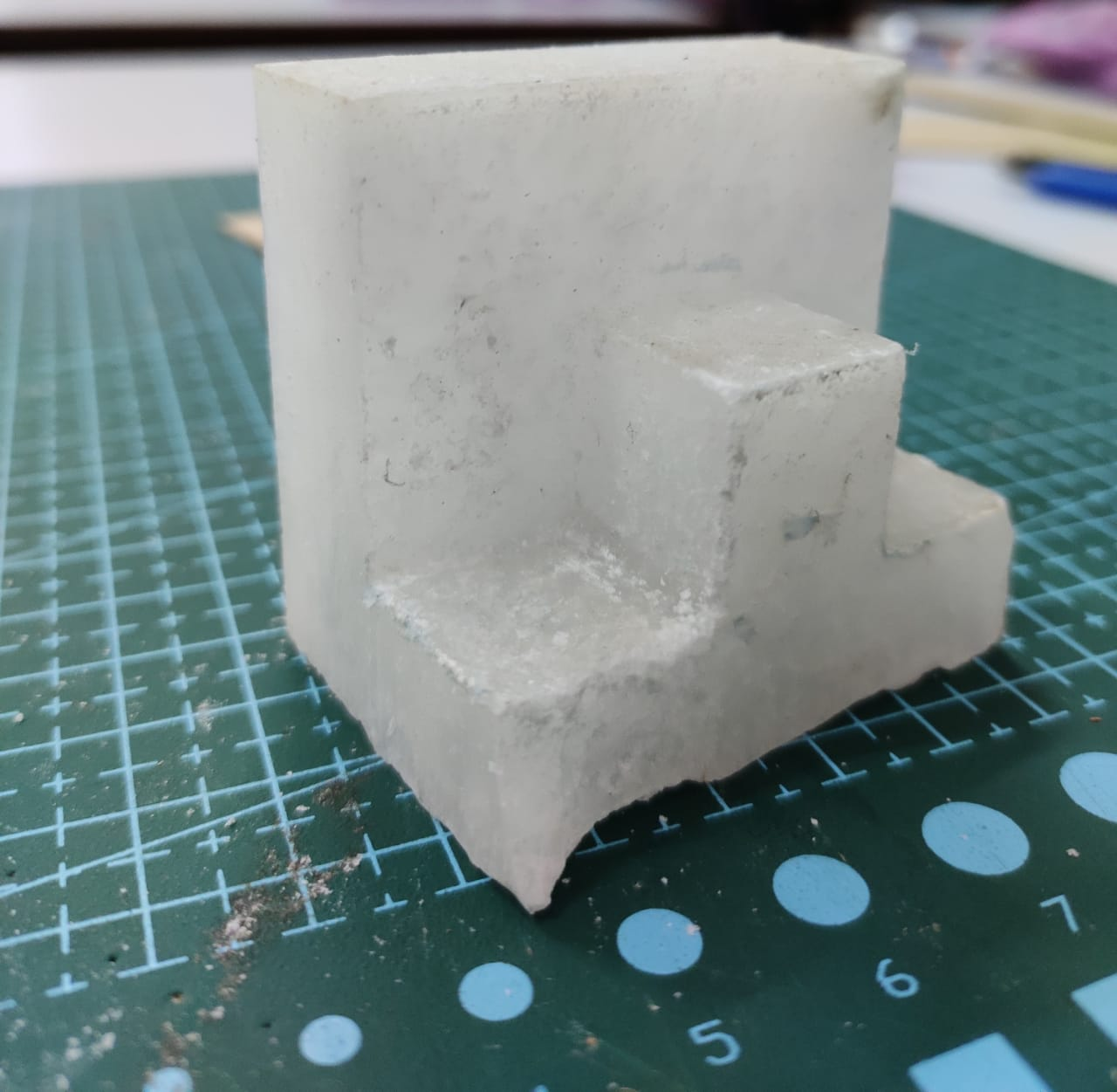

Wax Experiment

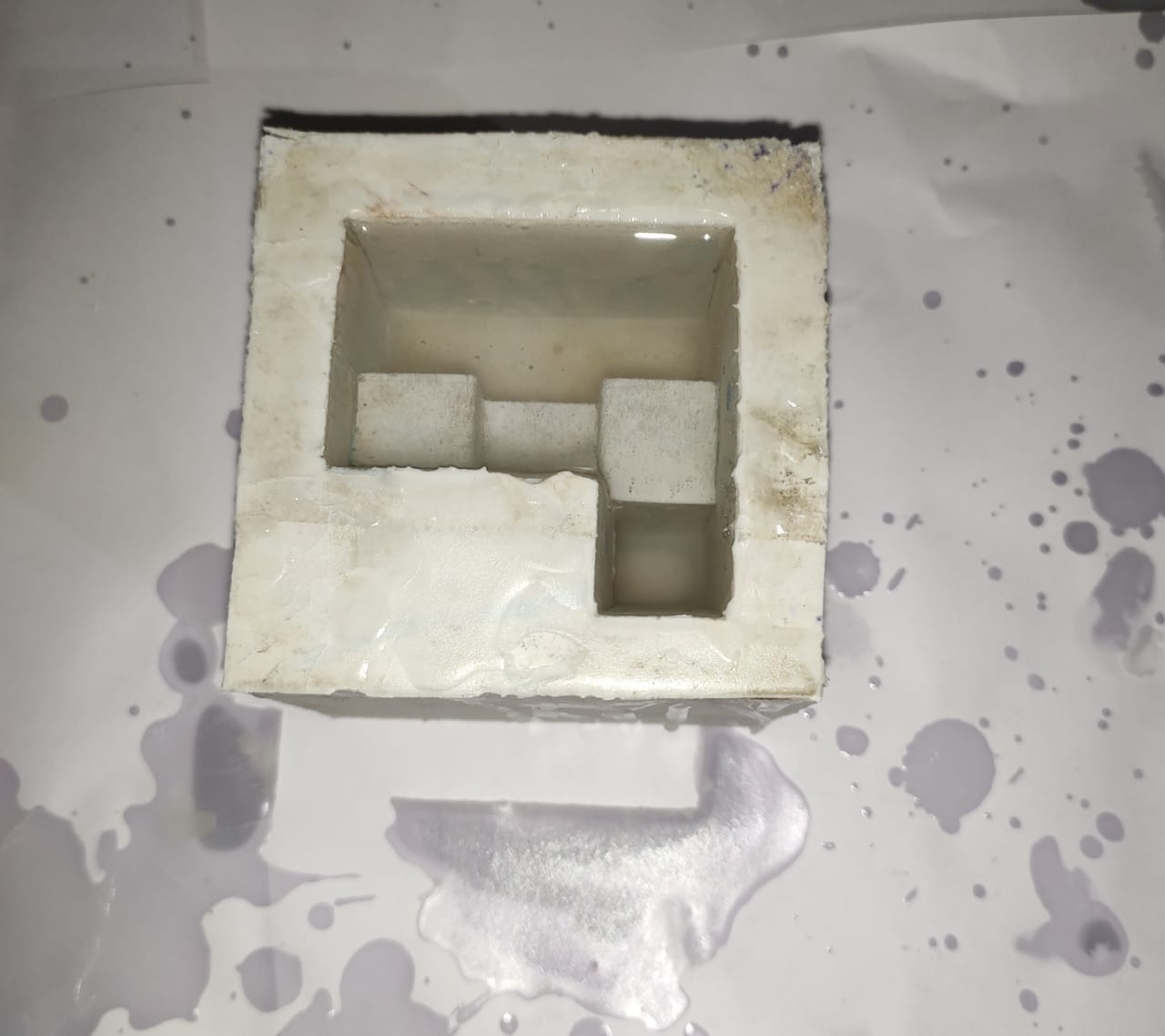

For this experiment we melted wax in a 'pan' until it is liquid, then carefully pour the hot wax into the silicone mold and allow to cool slightly .




Wax is the lightest and cheapest material among all other.

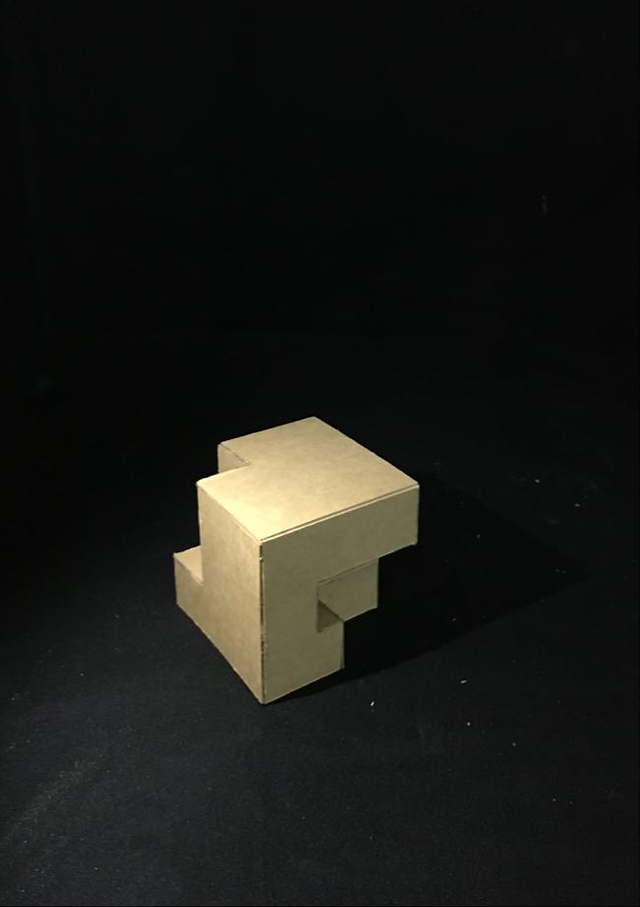

Prototype blocks



Pinewood and MDF block






ree

We cut each block in 4 layers of thickness .5 inches of a specific design for CNC cut and then sticked each layer.



CNC CUTTING


FINAL BLOCKS



ree

ree
ree


ree



Comments


By Nidhi Bhoir ( A21)
